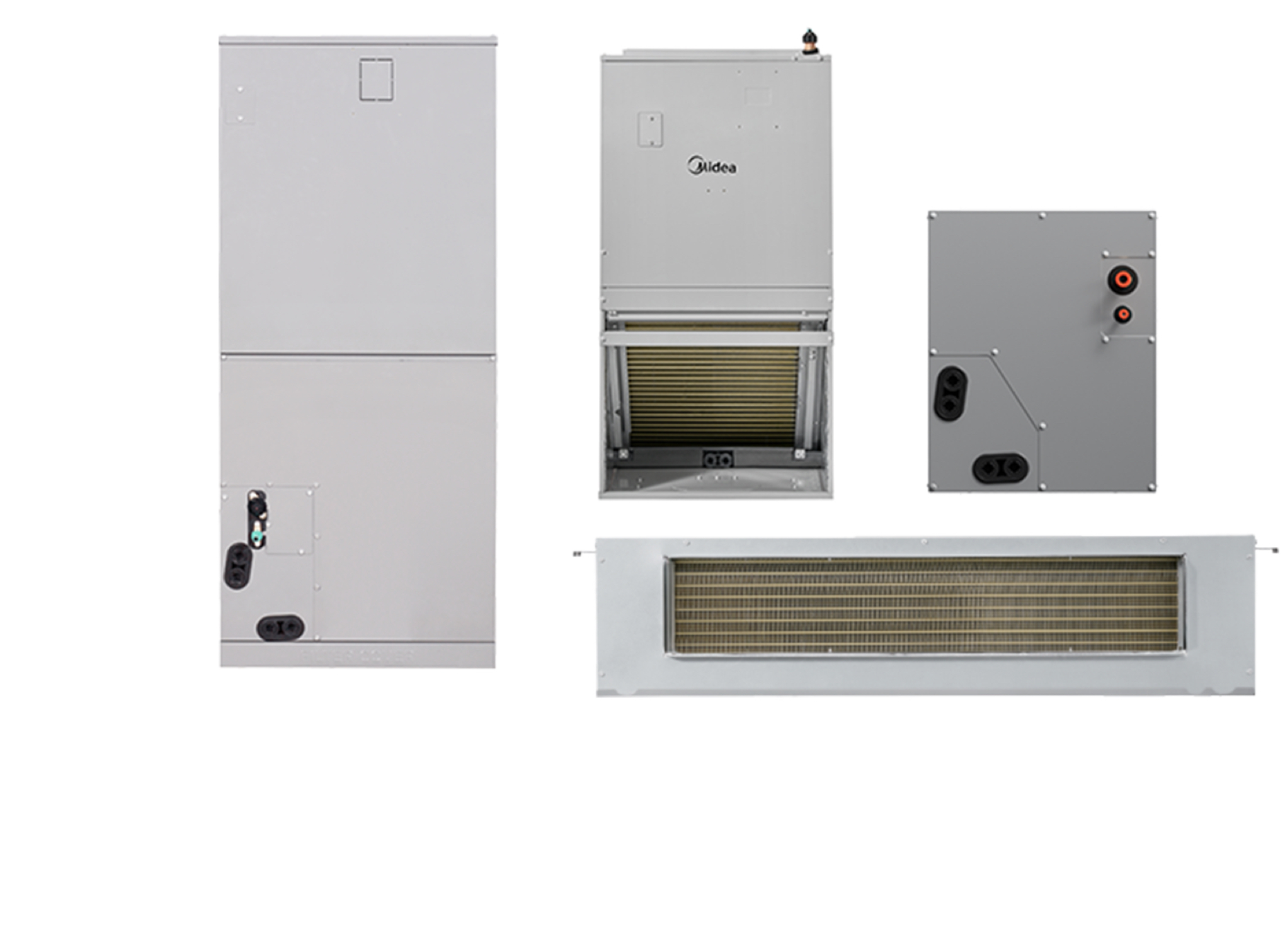

EXPLORE INDOOR UNITS
Multiple Unit Styles, Multiple Life Styles
All EVOX products feature compact unit size and a highly compatible system that can flexibly adapt to existing spaces and equipment, making installing and replacing a heat pump system in your home a real ease.
MULTI-POSITION
AIR HANDLER
AIR HANDLER
WALL-MOUNTED
AIR HANDLER
AIR HANDLER
CEILING-MOUNTED
AIR HANDLER
AIR HANDLER
A-COIL

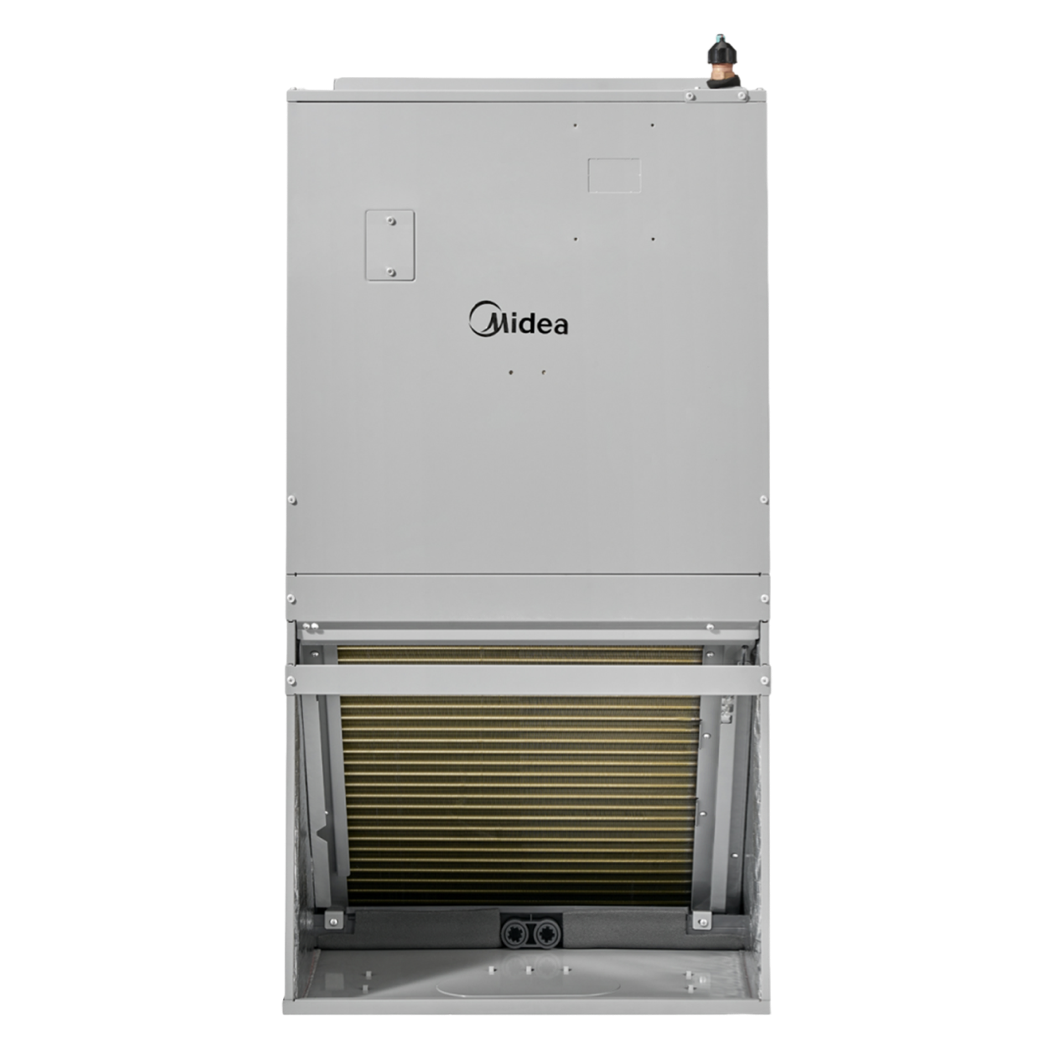

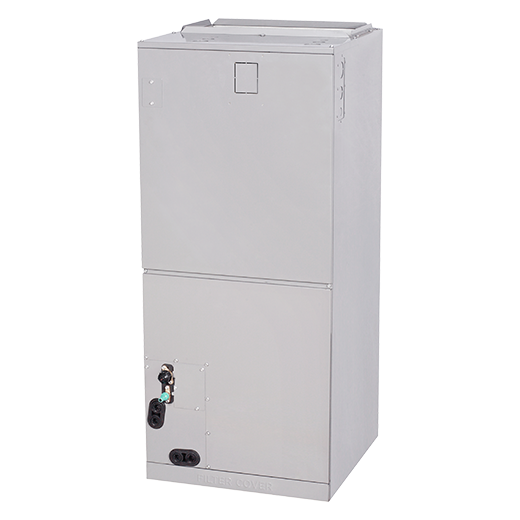

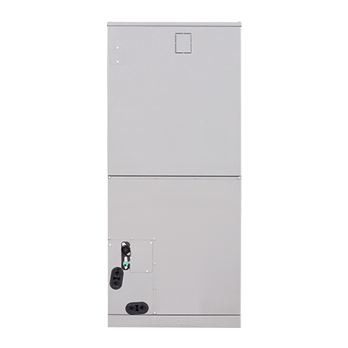

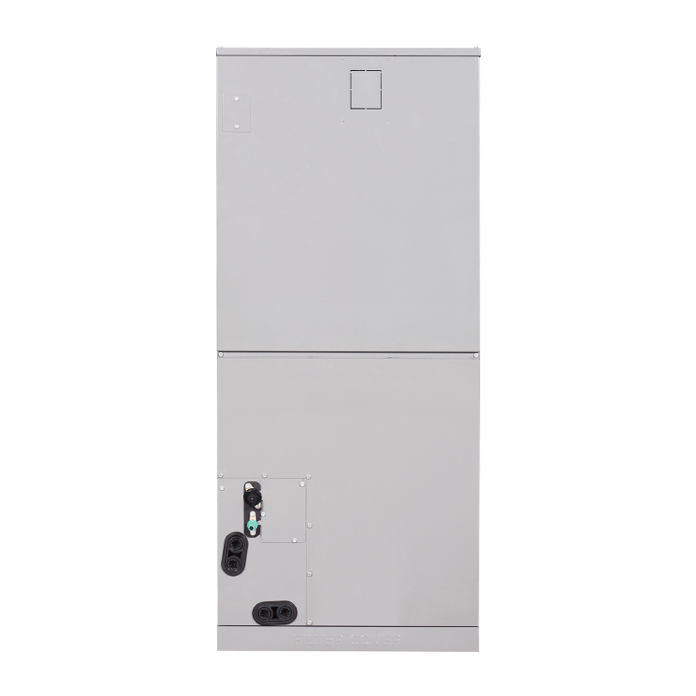

Multi-Position
Air Handler
Air Handler
·
Compatible with 485 or 24v·
Constant airflow ecm motor 2.0 provides consistent airflow up to 0.8 in. w.c.·
Electronic expansion valve (eev) control·
Optional auxiliary heat kits up to 25kw·
All-aluminum coil*
Please contact our authorized distributors for pricing.
SEER2 Up to
19.0
EER2 Up to
12.5
HSPF2-4 Up to
10.2
1.5-5 Tons
CONSTANT AIRFLOW TECHNOLOGY 2.0
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME

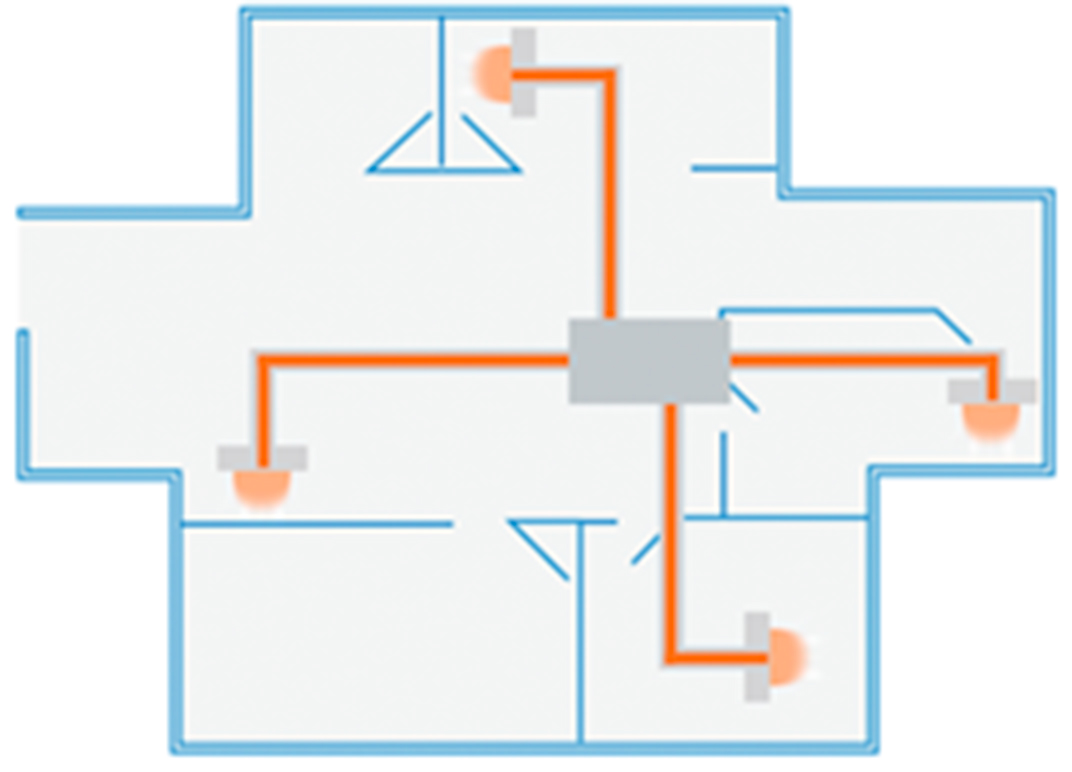

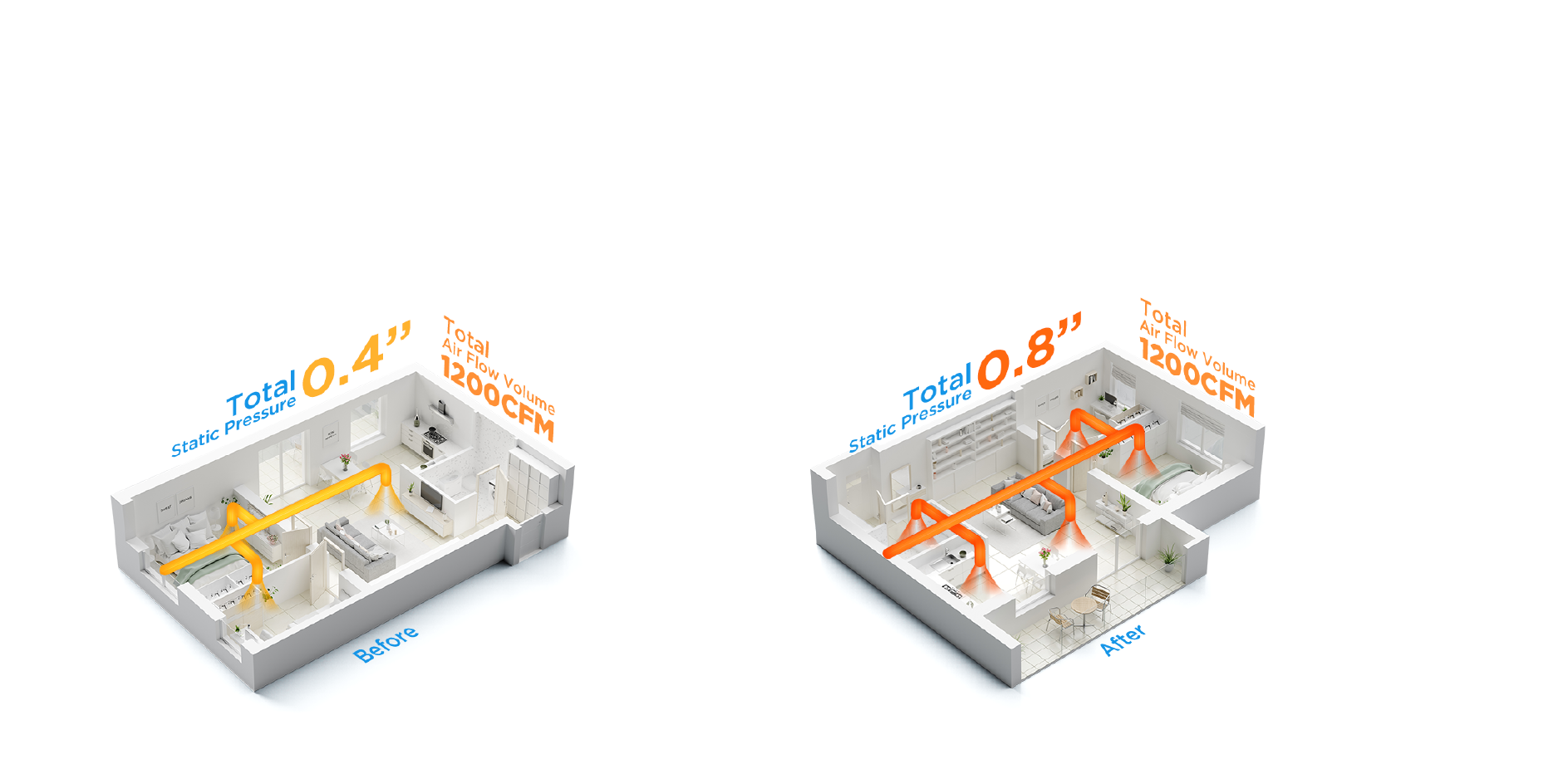

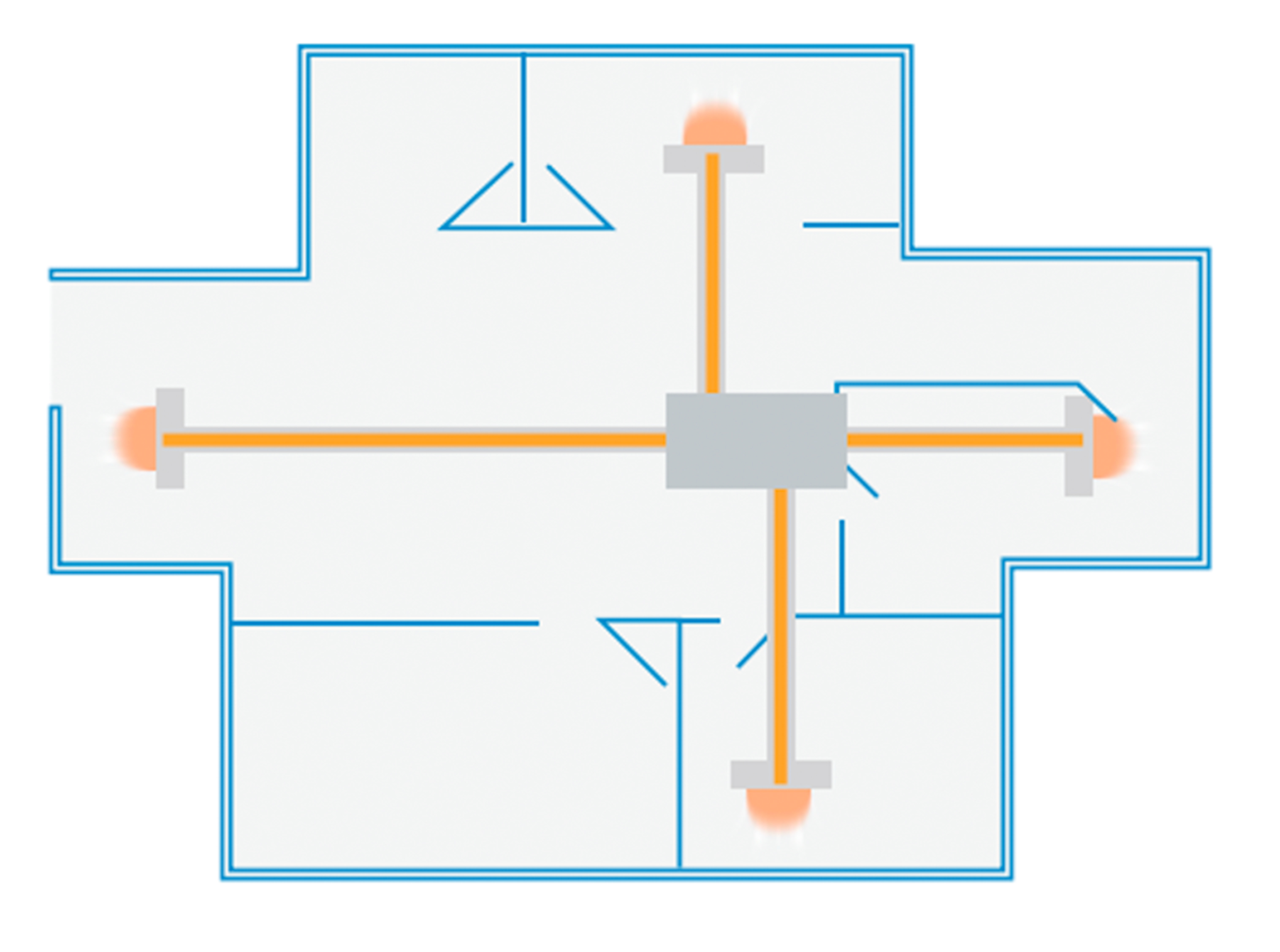

Different Ductwork Designs, Same Air Volume

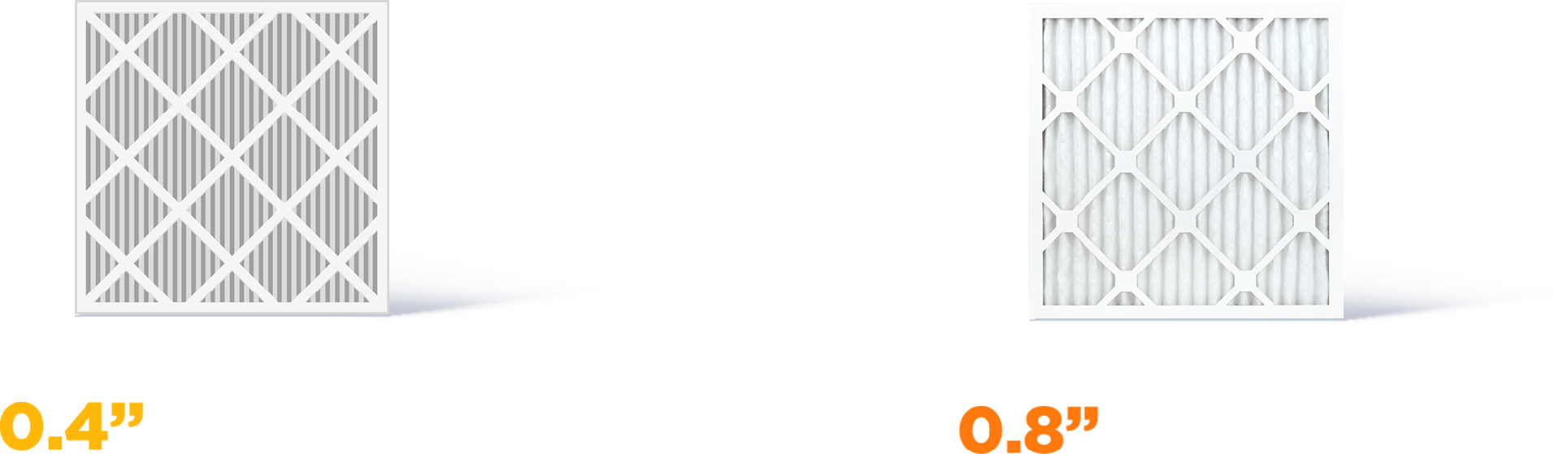

Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume
ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment

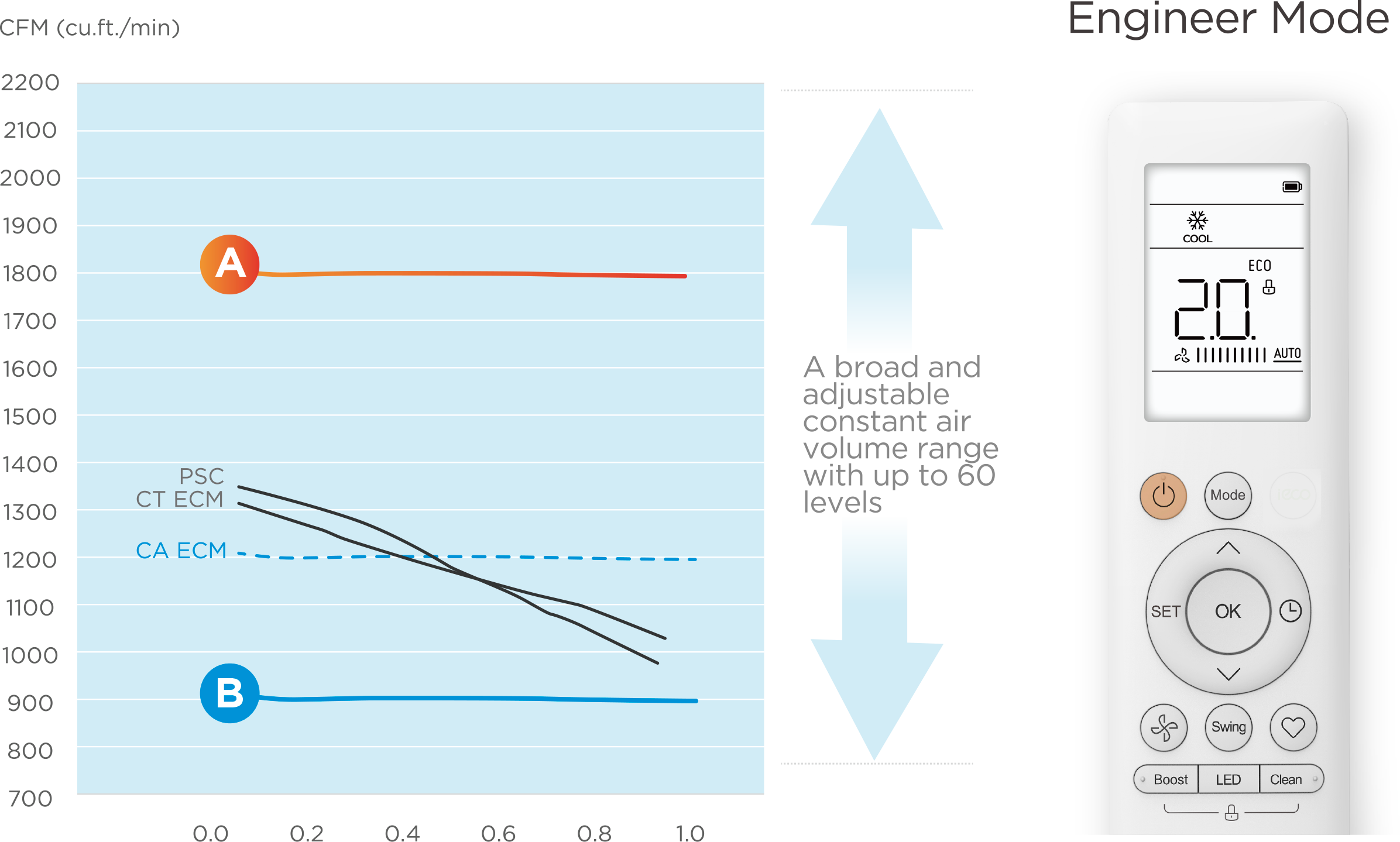

CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)

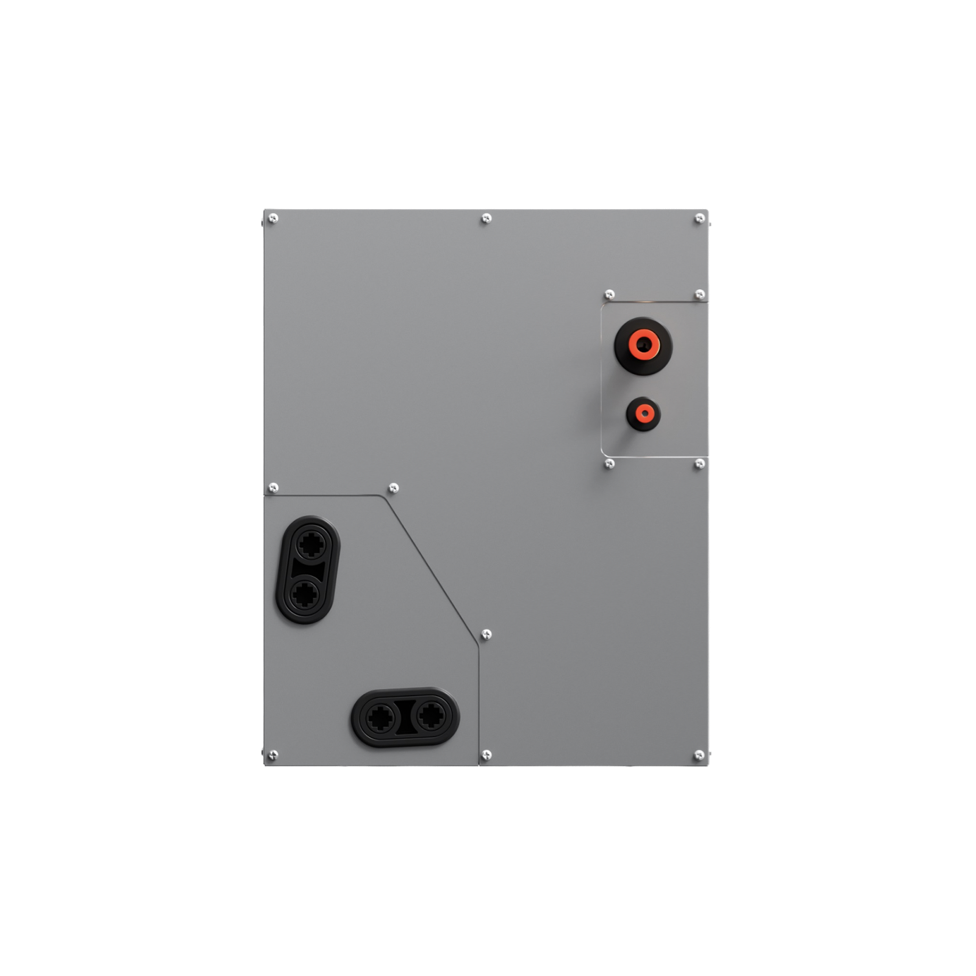

Wall-Mounted
Air Handler
Air Handler
·
Compatible with 485 or 24v·
Constant airflow ecm motor 2.0 provides consistent airflow of up to 0.8 in. w.c.·
Electronic expansion valve (eev) control·
Optional auxiliary heat kits up to 10kw·
All-aluminum coil*
Please contact our authorized distributors for pricing.
SEER2 Up to
19.3
EER2 Up to
12.1
HSPF2-4 Up to
10.8
1.5-3 Tons
CONSTANT AIRFLOW TECHNOLOGY 2.0
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
Different Ductwork Designs, Same Air Volume
Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume
ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment
CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)

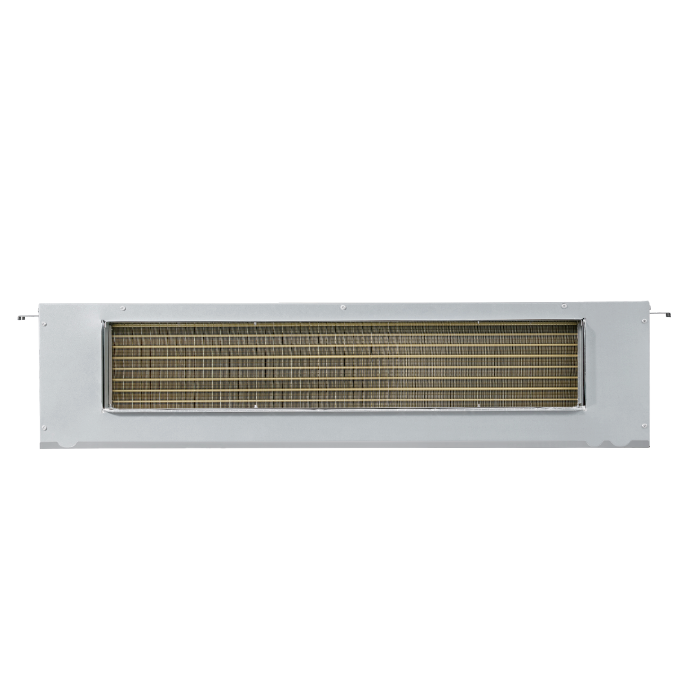

Ceiling-Mounted
Air Handler
Air Handler
·
Compatible with RS485 or 24v·
Constant torque ecm motor provides sufficient airflow of up to 0.8 in. w.c.·
Electronic expansion valve (eev) control·
Optional auxiliary heat kits up to 10kw·
All-aluminum coil*
Please contact our authorized distributors for pricing.
SEER2 Up to
17.5
EER2 Up to
12.0
HSPF2-4 Up to
10.5
1.5-3 Tons
Midea Ceiling-Mounted Air Handler — 18K-36K BTU
Midea's ceiling-mounted Pancake Air Handling Unit (AHU) brings inverter-driven heat pump technology into a compact, low-profile format engineered for in-ceiling installation. Unlike conventional fixed-speed ceiling-mounted units, the Midea Pancake AHU uses Enhanced Vapor Injection (EVI) technology and variable-speed inverter control to deliver consistent performance across a wide range of outdoor temperatures — including cold climates where fixed-speed systems typically underperform.
Available in four capacities — 18,000, 24,000, 30,000, and 36,000 BTU/h — the Pancake AHU is designed for multifamily residential projects, retrofit applications, and installations where ceiling cavities are the preferred HVAC pathway and floor or wall space is limited.

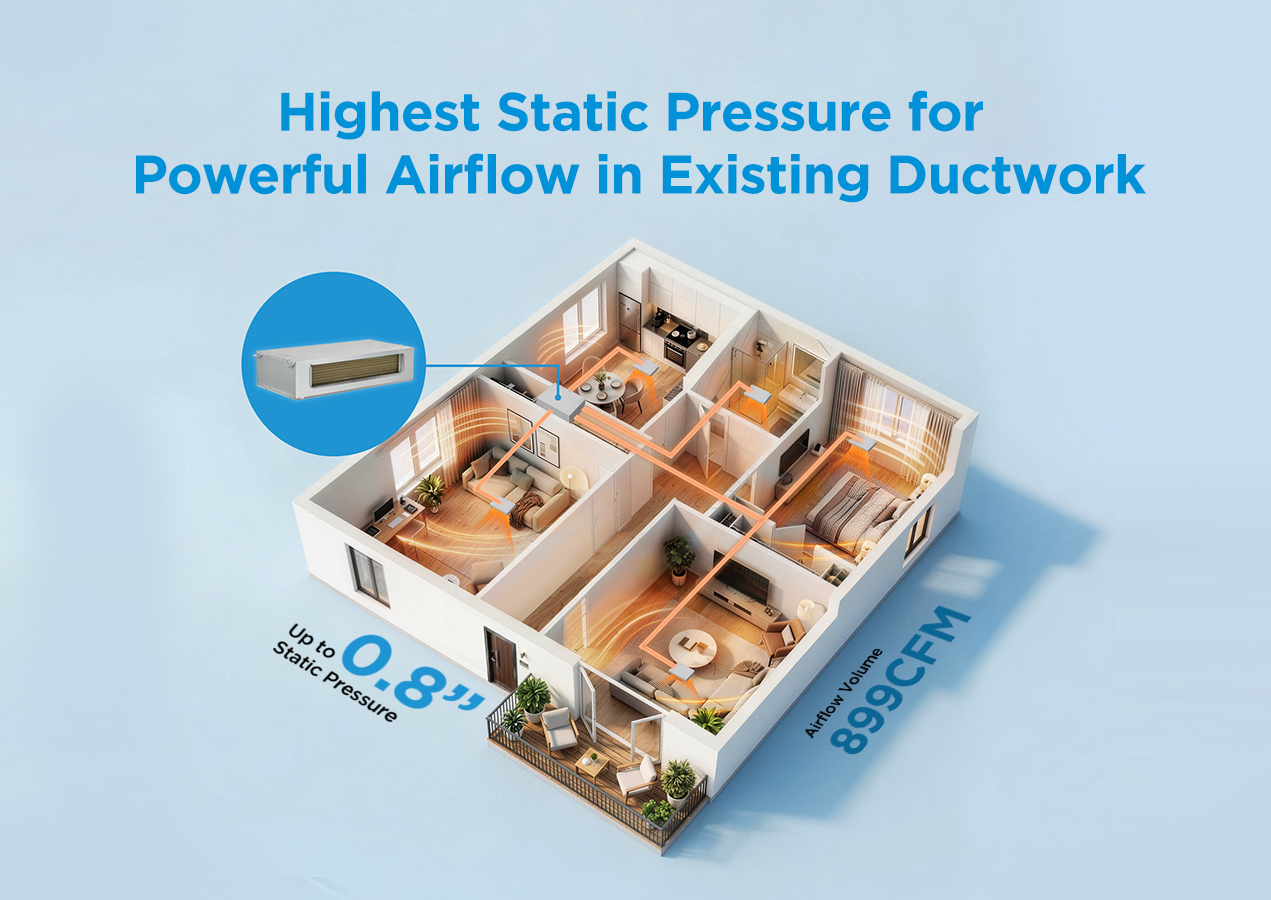

POWERFUL AIRFLOW, EVEN IN COMPLEX DUCTWORK
Delivers up to 0.8" static pressure.
INSTALLATION ADVANTAGES
WORKS WITH WHAT YOU ALREADY HAVE

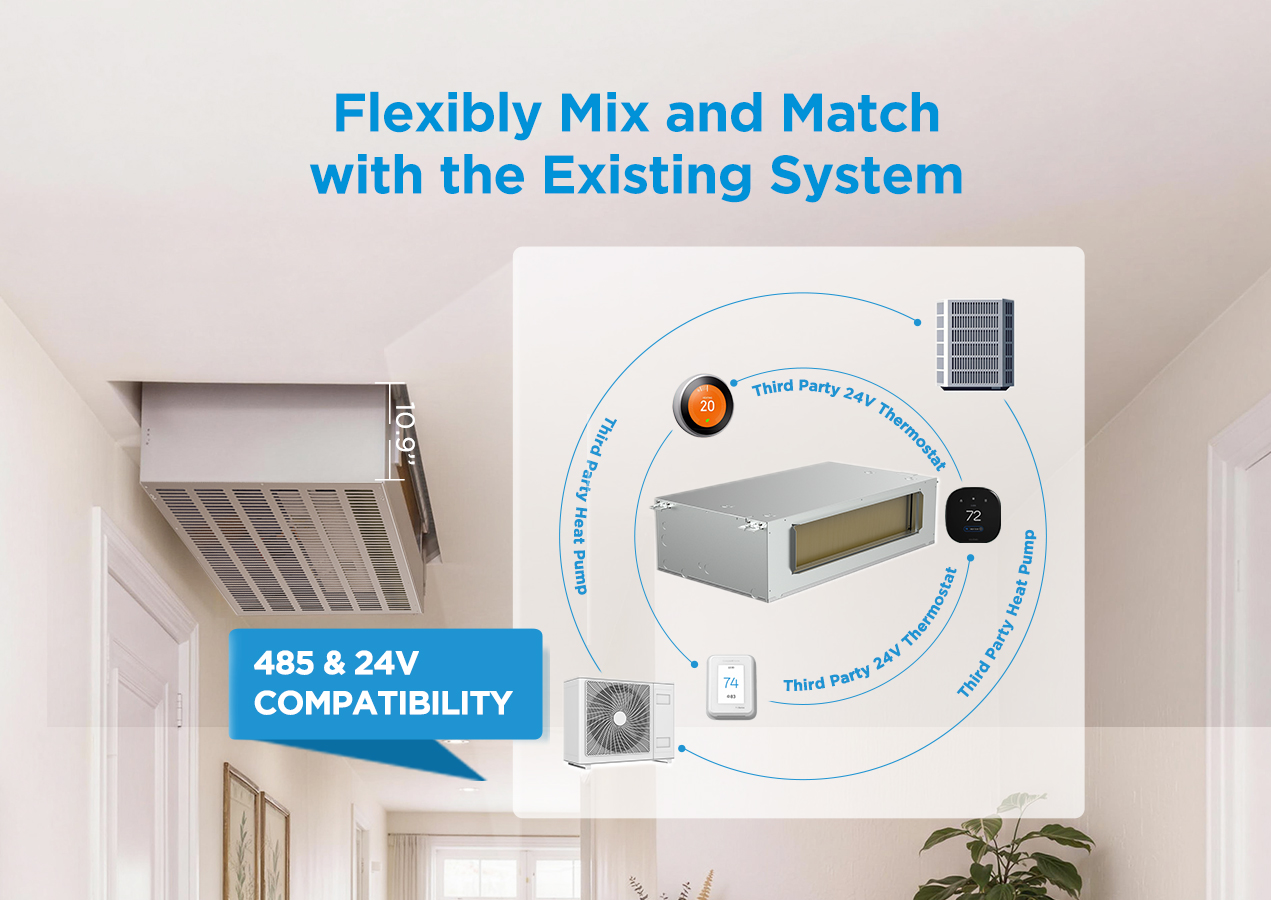

Compatible with both RS485 and 24V systems — seamlessly integrates with third-party thermostats and existing setups. No rewiring, no hassle.
The ultra-low-profile design fits ceiling cavities while accommodating existing ductwork, fire protection, and building infrastructure. The ceiling-mounted format moves HVAC equipment entirely out of occupied living space — a critical advantage in multifamily units where usable floor area drives property value. Output of up to 899 CFM supports longer duct runs and complex multi-room layouts.
The Pancake AHU pairs with Midea EVOX inverter-driven outdoor units, including the EVOX G3, creating a fully inverter-matched system. Auxiliary heat integration provides backup capacity for extreme weather scenarios.

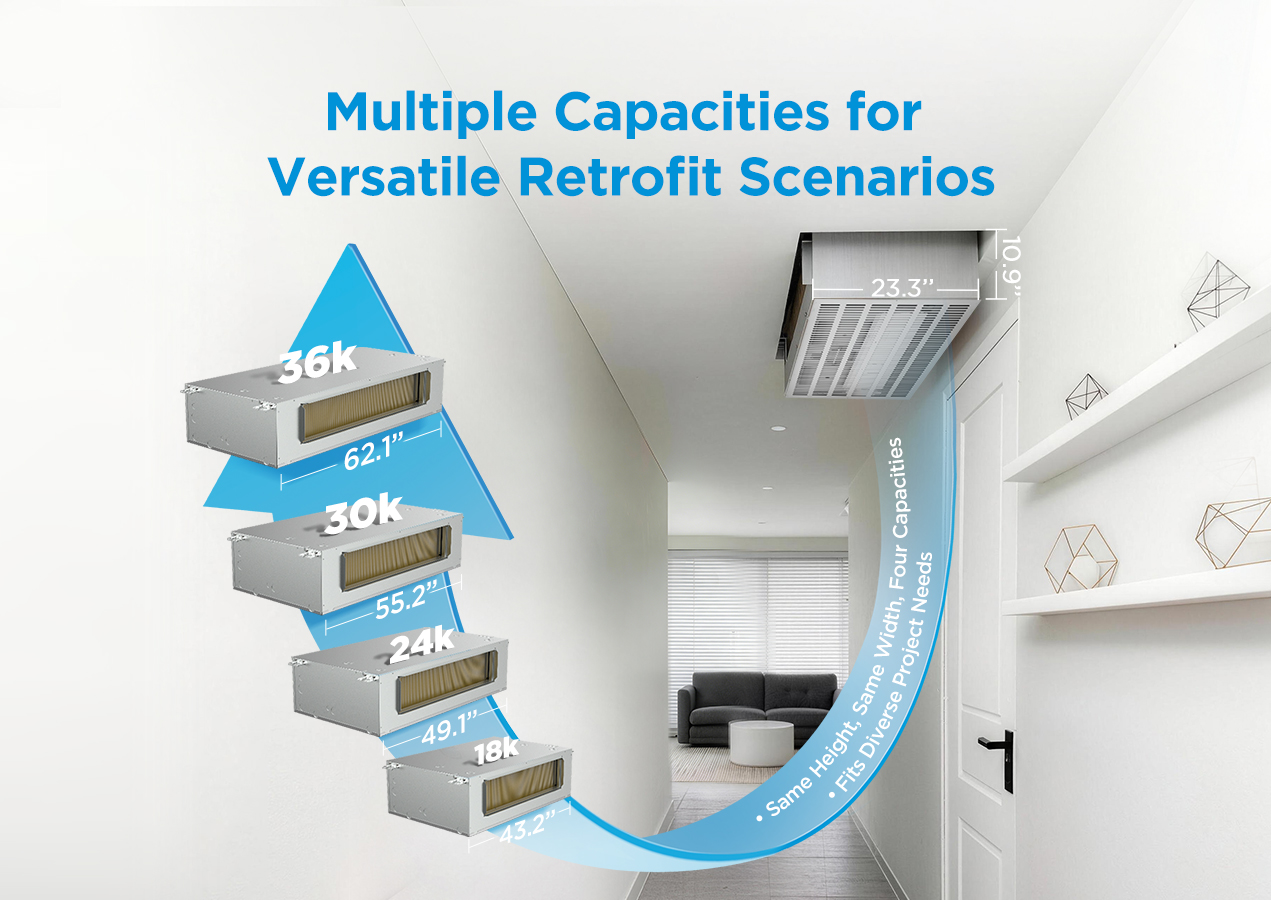

FROM 18K TO 36K
- ALL AT 10.9" ULTRA-LOW HEIGHT
- ALL AT 10.9" ULTRA-LOW HEIGHT
Choose the right capacity for your project without worrying about ceiling constraints. Consistent ultra-low height means one design fits all — easier specification, simpler installation.

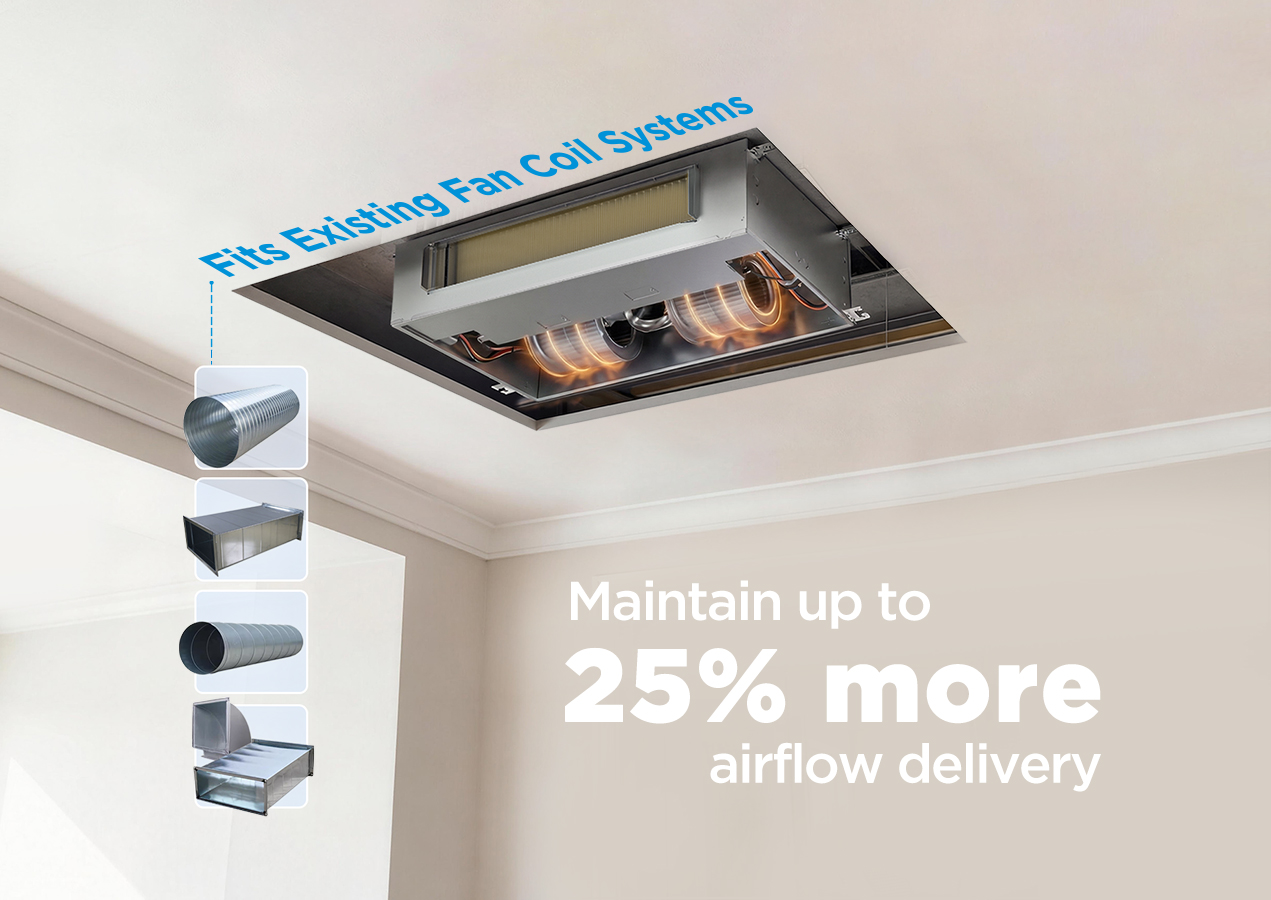

FITS YOUR EXISTING SYSTEM. DELIVERS 25% MORE AIRFLOW.
Designed to fit existing fan coil systems — no system redesign needed. Powered by ECM variable-speed motor, delivering up to 25% more effective airflow than traditional PSC units, even through complex ductwork.
Refrigerant & Sustainability
The Pancake AHU operates on R-454B, a next-generation, low-GWP refrigerant with approximately 78% lower Global Warming Potential than R-410A. R-454B is EPA SNAP approved and compliant with the American Innovation and Manufacturing (AIM) Act HFC phase-down schedule, making the Pancake AHU a future-ready choice.
Who Is the Pancake AHU For?
The Midea Pancake AHU is ideal for: multifamily developers and property managers seeking efficient ceiling-mounted HVAC without sacrificing unit square footage; HVAC contractors handling retrofit projects in buildings where floor-mounted air handlers are impractical; and cold-climate regions where inverter-driven performance is critical for maintaining comfortable indoor temperatures throughout the heating season.
FAQs
Q1: Q1: What is the Midea Pancake AHU?
A: The Midea Pancake AHU is a ceiling-mounted, inverter-driven Air Handling Unit available in 18K–36K BTU/h. It uses Enhanced Vapor Injection (EVI) technology to deliver 100% heating output at −4°F (−20°C) and continuous operation to −22°F (−30°C), making it suitable for cold-climate multifamily and retrofit applications.
Q2: Q2: How does the Pancake AHU differ from a standard ceiling-mounted AHU?
A: Standard ceiling-mounted AHUs use fixed-speed compressors, which limit cold-weather performance. The Midea Pancake AHU uses an inverter-driven variable-speed compressor with EVI technology, delivering more stable heating output across a wider temperature range and improved energy efficiency at part-load conditions.
Q3: Q3: What capacities is the Pancake AHU available in?
A: Available in four capacities: 18,000, 24,000, 30,000, and 36,000 BTU/h, supporting a range of room sizes and multifamily configurations.
Q4: Q4: Is the Pancake AHU compatible with standard thermostats?
A: Yes. It supports 24V thermostat wiring and RS-485 communications, compatible with most residential thermostats and Building Management Systems (BMS).
Q5: Q5: What refrigerant does the Pancake AHU use?
A: The Pancake AHU uses R-454B, a low-GWP refrigerant (~78% lower GWP than R-410A), EPA SNAP approved and AIM Act compliant.

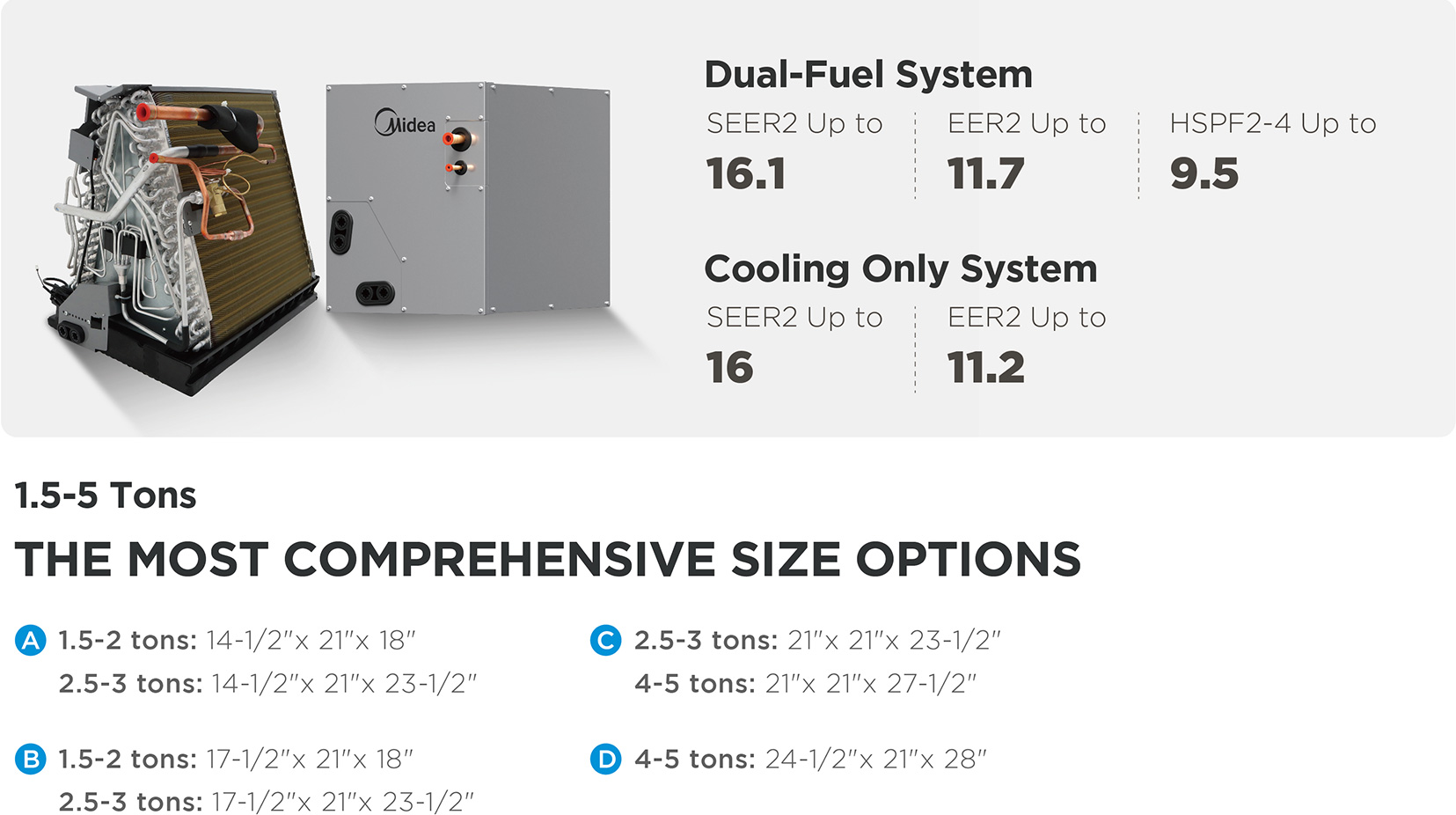

A-Coil

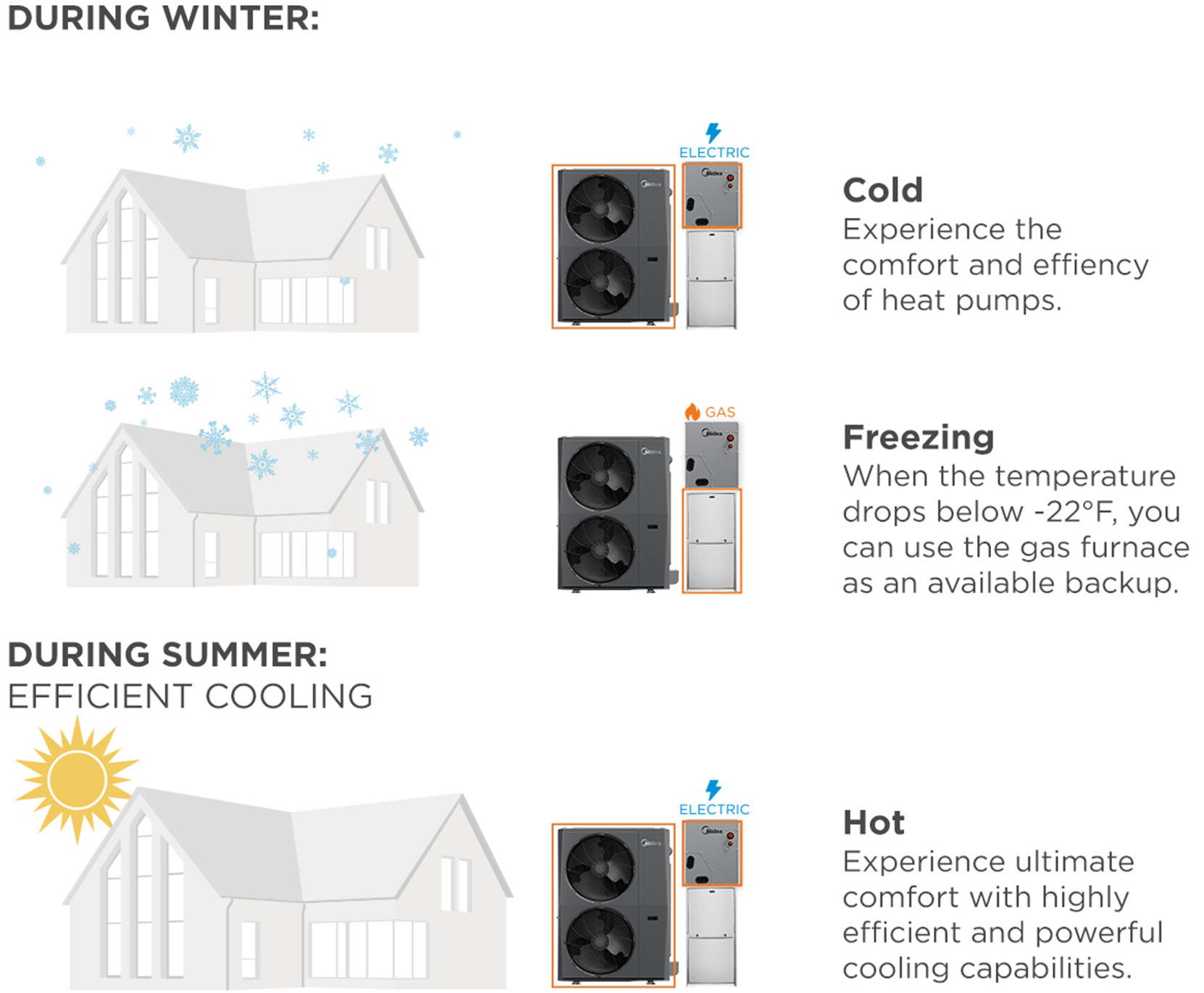

Dual Fuel System
Heat pump
Cooling Only
Dual Fuel System
Heat pump
Cooling Only
·

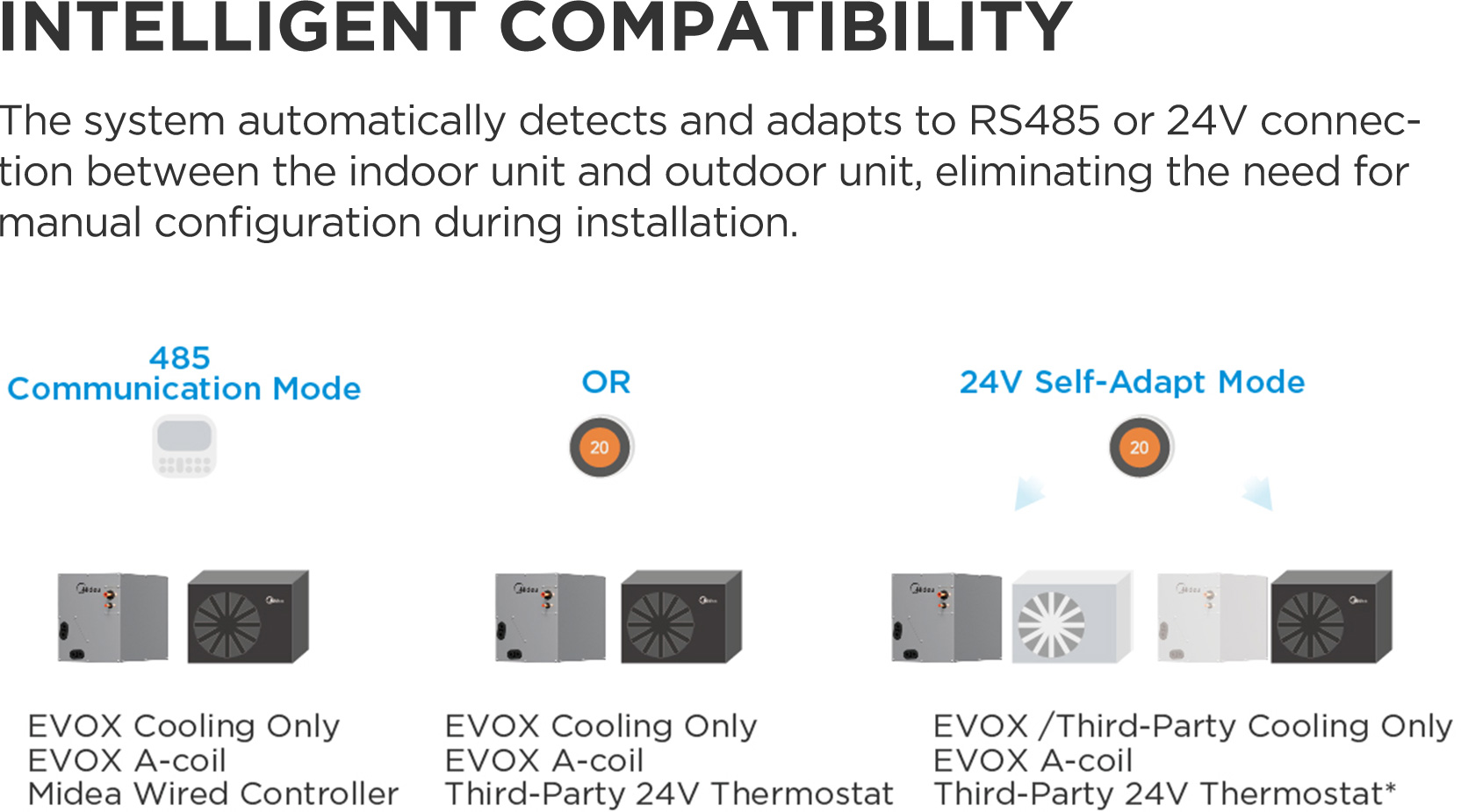

Compatible with 485 or 24v·
TXV control·

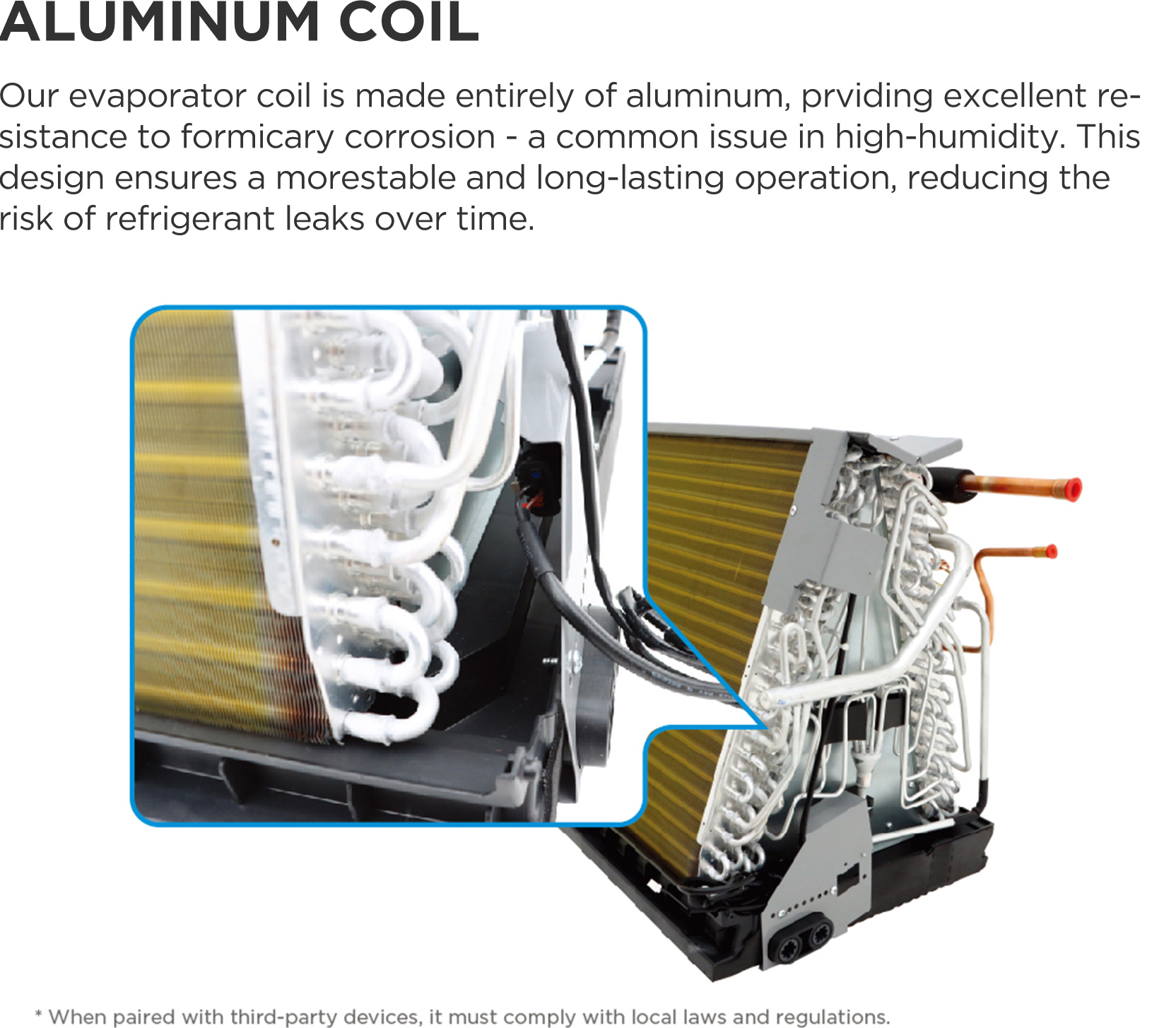

All-aluminum coil·

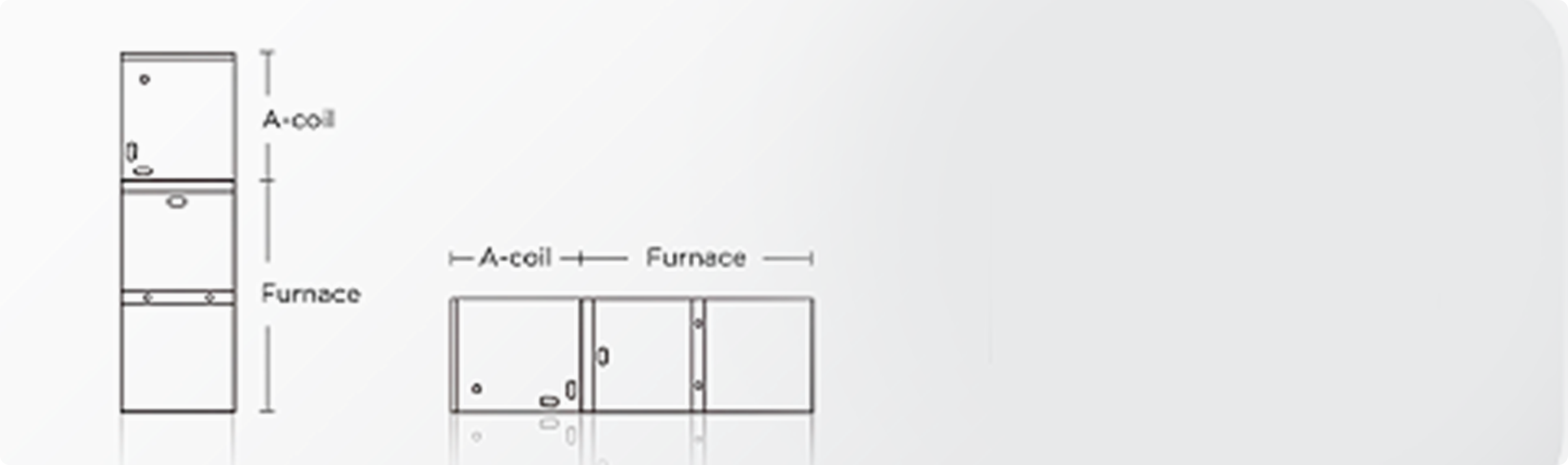

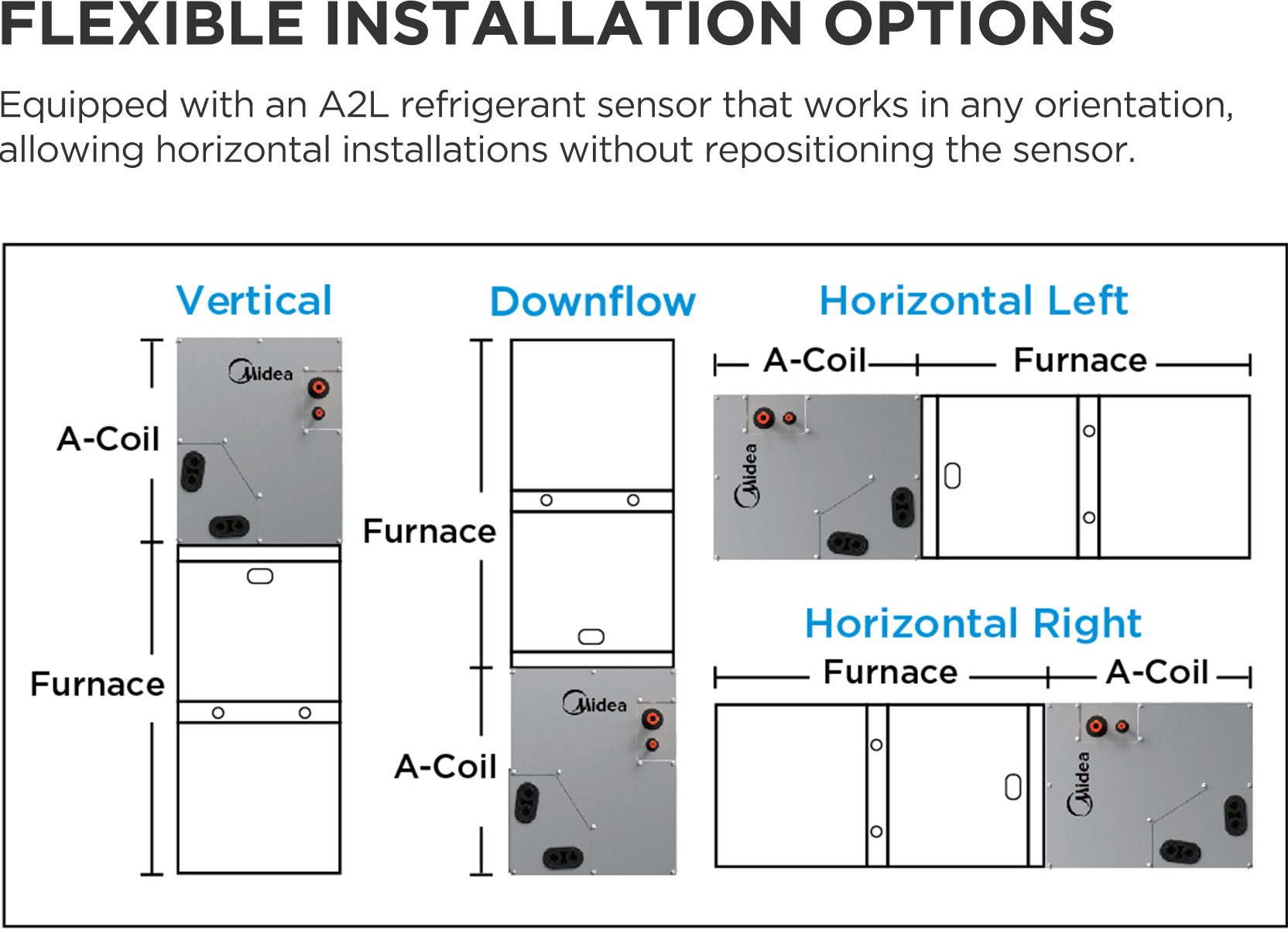

Flexible multi-poise design·
Complete size options*
Please contact our authorized distributors for pricing.
Heat Pump System

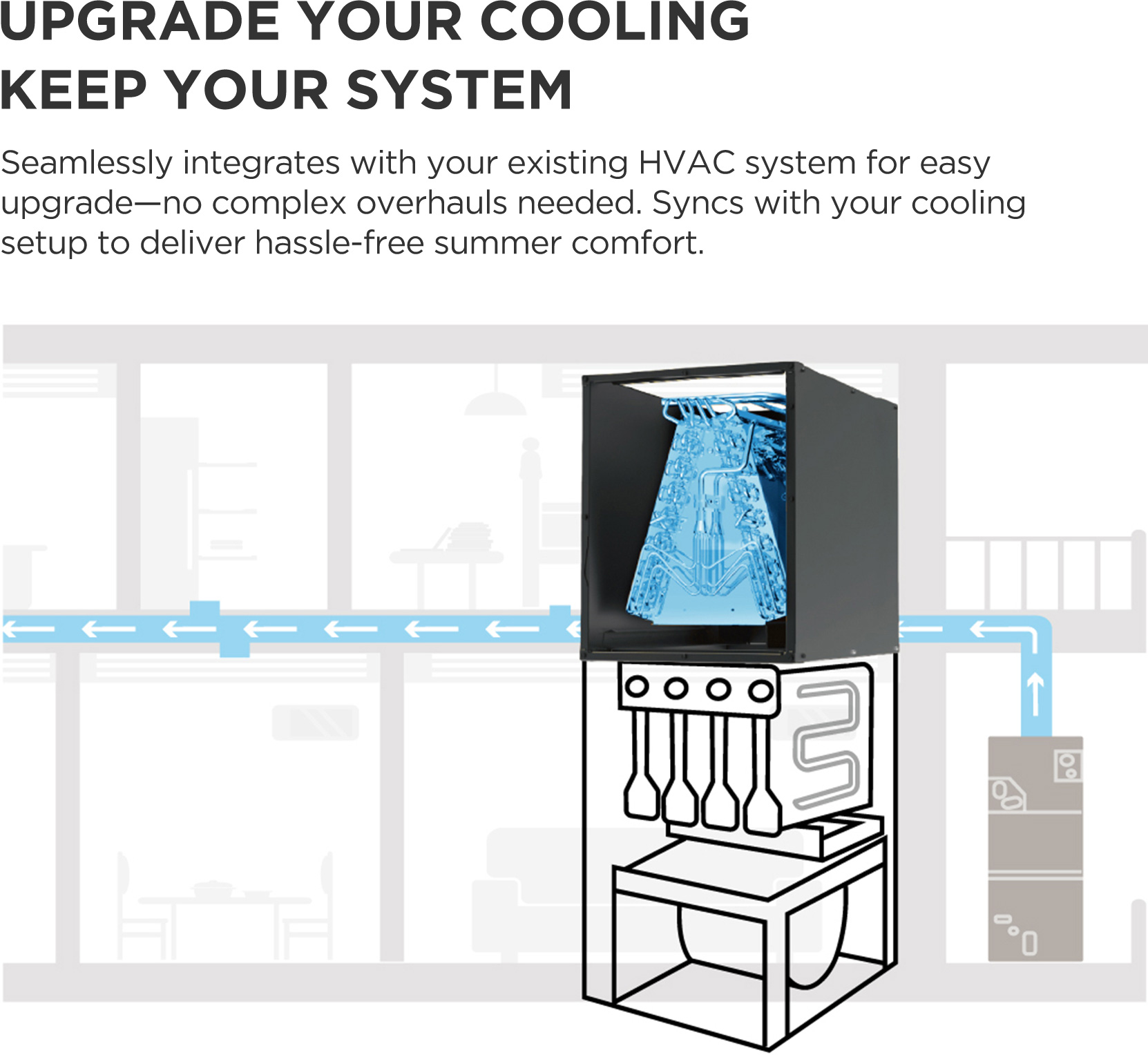

COOLING ONLY SYSTEM

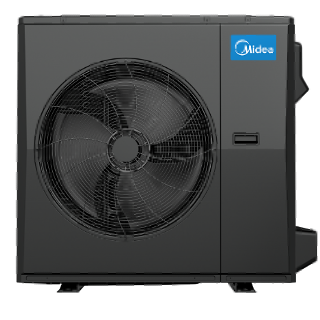

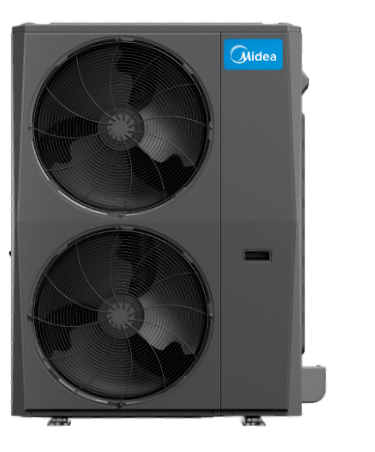

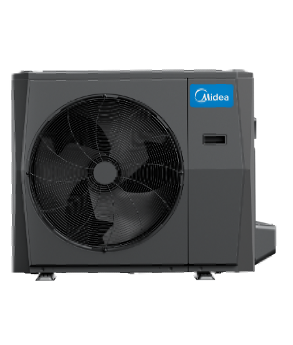

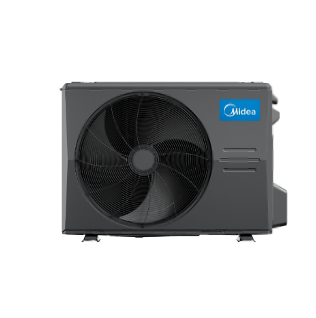

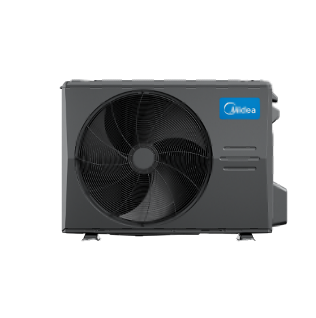

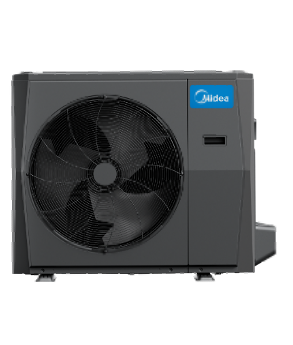

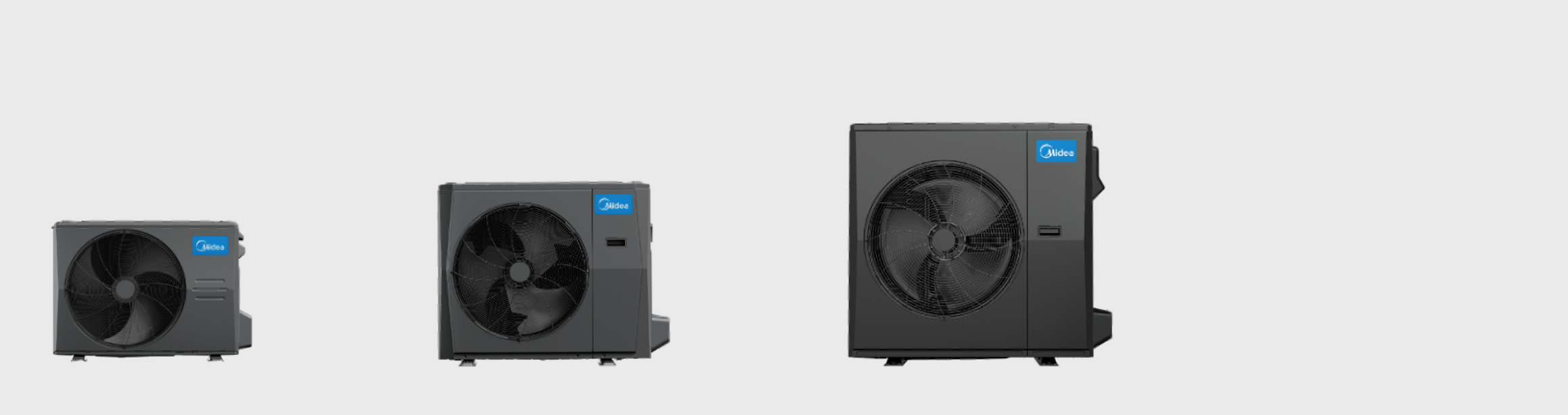

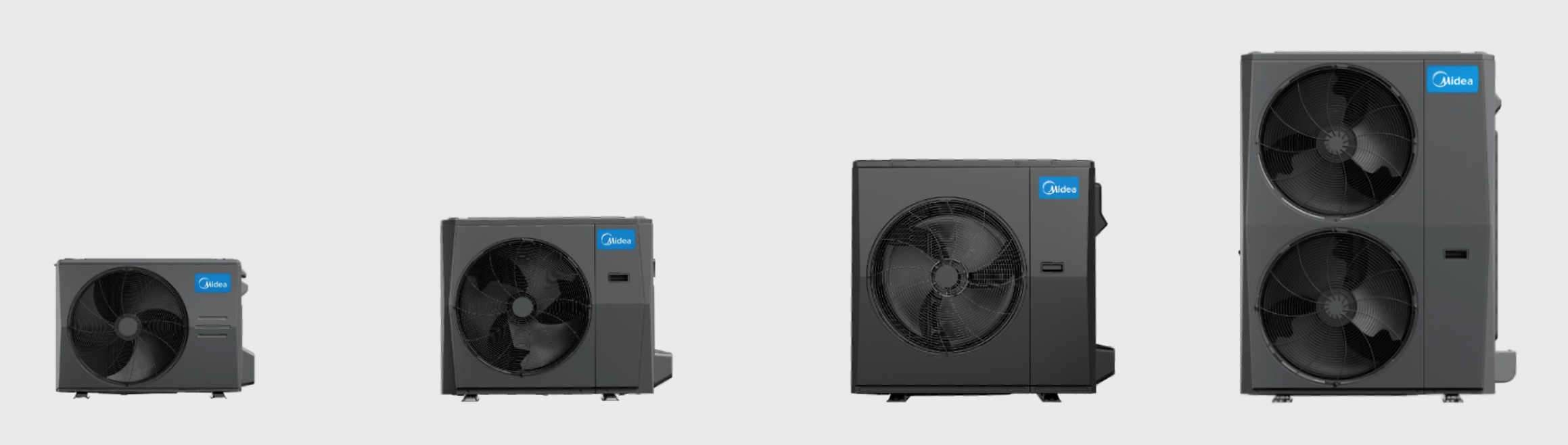

Compatible Outdoor Units
Learn More
+
Videos
Learn More
+
EXPLORE CONTROLS
Comfort Easy
Comfort Extra
Thermostat Interface
Applicable to
BACnet Protocol
BACnet Protocol
Comfort Easy
Two-way Communication Wired Controller
Midea Comfort Easy controller features easy-to-navigate screen and is equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
Request More Information
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
Comfort Extra
Two-way Communication Wired Controller
Midea Comfort Extra controller features easy-to-use touchcontrol interface and simple toread and navigate screen. It’s equipped with a wide arry of user friendly functions including flexible mode setting, weekly scheduling, and staged operational power setting. Consider adding the Midea SmartHome APP control app to upgrade your system with remote access from your smartphone or tablet.
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
This controller permits group operation for up to 16 indoor units.
Request More Information
It also enhances easy servicing for installers with the exclusive egineer mode which allows installers to easily adjust the static pressure of the ducted unit for best sense of comfort and installation convenience.
This controller permits group operation for up to 16 indoor units.
Thermostat Interface
Our thermostat interface allows HVAC thermostats and input/output controllers to control either residential or commercial indoor units through its connector.
Request More Information
Applicable to BACnet Protocol
Midea AC systems can be easily integrated into an installation based on BACnet/IP communication protocol. The Intesis IN770AIR00x0000 gateway helps to access all the signals from each air conditioner unit and control the whole HVAC network.
You can easily control and monitor all of the installed air conditioner units through the BMS network.
Request More Information
You can easily control and monitor all of the installed air conditioner units through the BMS network.
